1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Power 1.5 Kw To 50 Kw/ 2 Hp To 60 Hp
Automation Grade PLC With HMI / Manual
Voltage 440 V/ 3 Phase
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Country of Origin
India
Capacity
2 Kgs- 800 Kgs
Material Of Construction
S.S 316/ S.S 304/ MS
Polish
Matt/ Mirror

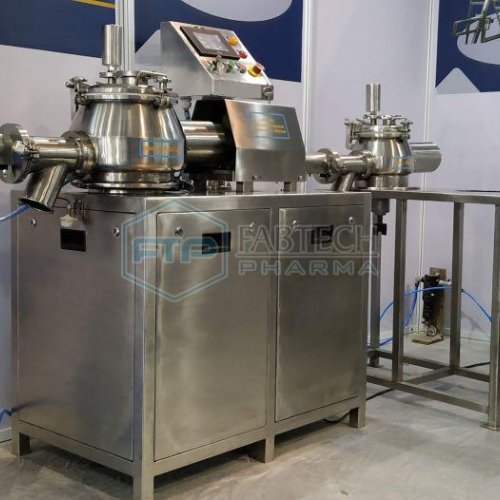

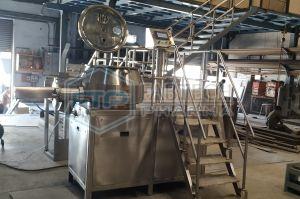

RAPID MIXER GRANULATOR (Available Cap: 5 Kgs to 800 Kgs)

Rapid Mixer Granulator is used in the pharmaceutical industries for mixing as well as granulation of

ingredients. It is equipped with impeller fitted to the base of the mixing bowl and the chopper is

mounted on the wall of the mixing bowl.


Salient Features:

 All contact parts are made in S.S 316 and Outer

surfaces are made in SS - 304

 Drive Controlled Motor for variable speed.

 Three Blades Main Impeller used for Proper Mixing.

 Minimum clearance between bowl and impeller

 4 Blades S.S Impeller For Chopper

 Discharge Port is operated by pneumatic cylinder

 Proximity Switch is provided For Safety Operation

 The machine is supplied with standard manual controls.

Optionally, can also be supplied with Programmable

Logic Control [PLC] system and MMI for the visual

display of the operating parameters.

 Components of the machine are having easy

accessibility for cleaning.

 All electrical & pneumatic parts are pre wired to

simplify installation.

 Hinged type discharge port is provided for easy

cleaning.
